Pune and the Pimpri-Chinchwad Municipal Corporation (PCMC) form one of the most dynamic industrial and manufacturing hubs in South Asia. From the sprawling automotive plants in Chakan and Bhosari to the rapid warehousing expansion in Wagholi and Talawade, businesses are scaling at an unprecedented rate. However, this aggressive growth brings a significant challenge: skyrocketing commercial real estate costs and a severe shortage of available floor space.
When your warehouse, factory, or retail outlet runs out of room, relocating to a larger facility disrupts operations, incurs massive moving costs, and demands higher monthly rent. The smarter, highly engineered solution is to build upward rather than outward.
Custom-fabricated Mild Steel (M.S.) mezzanine floors offer a robust, cost-effective way to double your usable space without altering your building’s footprint.
What is an M.S. Mezzanine Floor?

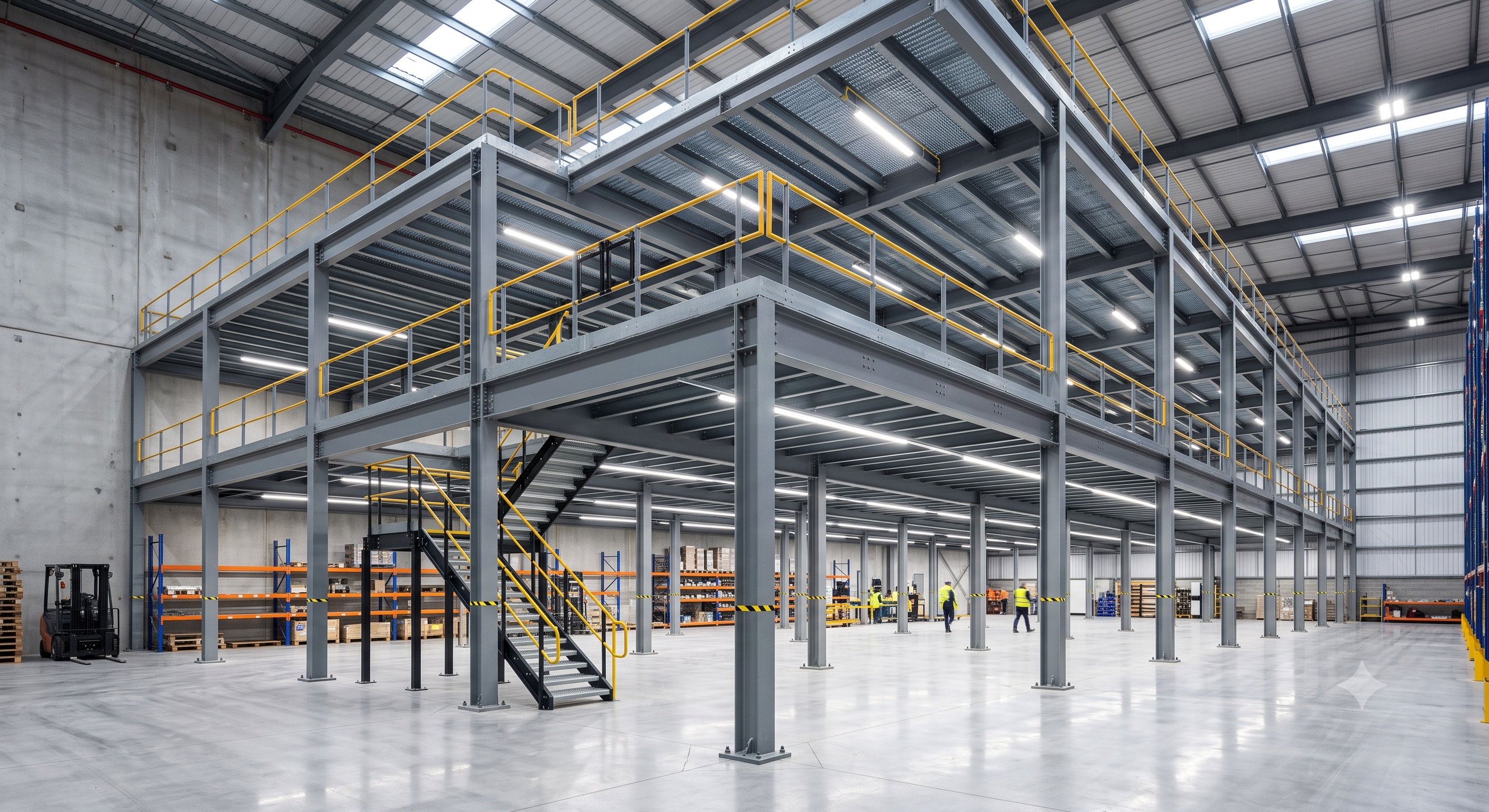

A mezzanine floor is an intermediate floor built between the main floor and the ceiling of a building. Unlike a permanent structural addition to the building's architecture, a steel mezzanine is a semi-permanent, free-standing structure.
M.S., or Mild Steel, is the absolute gold standard for these structures. Mild steel contains a low percentage of carbon (typically 0.05% to 0.25%), making it highly malleable, incredibly strong, and easy to weld. It provides the immense tensile strength required to support heavy industrial loads—such as machinery, pallet racks, and heavy foot traffic—while remaining flexible enough to be custom-designed for complex warehouse layouts.
Why Choose Mild Steel for Your Mezzanine?
When investing in structural fabrication for your business, material choice dictates the lifespan, safety, and utility of the final product. Here is why M.S. remains the undisputed champion for mezzanine fabrication:
Exceptional Load-Bearing Capacity: Mild steel framework, utilizing IS 2062 grade structural steel, can be engineered to support massive weight requirements, ranging from 300 kg/sq.m for light storage up to 2000+ kg/sq.m for heavy manufacturing equipment.
Cost-Effective Fabrication: Compared to concrete expansions or structural timber, mild steel is significantly more affordable. It requires less time to procure, fabricate, and install, directly lowering your capital expenditure.
High Durability and Lifespan: With proper anti-corrosive treatments—such as red oxide primers and industrial-grade epoxy topcoats—an M.S. mezzanine will easily last for decades, even in the humid monsoon conditions of Maharashtra.
Adaptability and Customization: Steel can be cut, welded, and bolted to fit around existing obstacles like support pillars, machinery, or HVAC ducting. If your business moves, bolted M.S. mezzanines can be dismantled, transported, and reassembled at your new facility.
The Strategic Benefits for Businesses in Pune & PCMC
Operating in industrial zones like Bhosari MIDC, Chakan, Hinjewadi, and Sanaswadi requires high efficiency. Installing an M.S. mezzanine floor offers transformative operational advantages.
1. Double Your Usable Floor Space
A mezzanine instantly capitalizes on vertical volume. A 5,000 sq. ft. warehouse with a 20-foot ceiling is wasting 50% of its spatial capacity. A mezzanine converts that empty air into functional real estate for offices, assembly lines, or shelving.
2. Avoid Relocation Headaches
Moving a manufacturing unit or a fully stocked warehouse in Pune’s heavy traffic can halt your operations for weeks. You face machinery recalibration, inventory audits, and logistics rerouting. A mezzanine allows you to scale up in your current, optimized location without halting daily work.
3. Rapid Return on Investment (ROI)
The cost of fabricating an M.S. mezzanine is a fraction of the cost of acquiring new commercial land in PCMC or paying a year’s rent on a larger facility. Most businesses see a complete return on their mezzanine investment within 12 to 18 months simply through rent savings and increased inventory capacity.
4. Seamless Zoning and Organization
Mezzanines allow you to physically separate different operational branches. You can keep noisy, heavy manufacturing on the ground floor while housing quiet administrative offices, QA testing labs, or sensitive electronic storage on the elevated platform.
Key Applications Across Industries
Our fabrication services cater to a diverse range of business sectors across the Pune region. The versatility of M.S. mezzanines makes them ideal for:
Warehousing and Logistics
With the rise of e-commerce, third-party logistics (3PL) providers need maximum shelving density. Mezzanines allow for multi-tier racking systems, enabling efficient picking, packing, and dispatch operations.
Manufacturing Units
Automotive ancillary companies in PCMC frequently use mezzanines to separate lightweight assembly processes (like wiring harnesses or plastic molding) from heavy CNC machining on the ground floor.
Retail Showrooms
Large retail outlets on the Pune-Ahmednagar highway or in bustling areas like Pimpri leverage mezzanines to create elevated display areas for furniture, electronics, or apparel, while keeping bulk stock hidden on the floor below.
Commercial Offices
Industrial sheds often lack dedicated administrative space. We fabricate custom mezzanine platforms enclosed with glass or acoustic panels to serve as supervisory cabins, boardroom spaces, and breakrooms, offering managers a bird’s-eye view of the factory floor.
Our End-to-End Fabrication Process
Building a safe, compliant, and durable mezzanine floor is a structural engineering task that requires precision. As a specialized fabrication business serving Pune and surrounding areas, we execute a rigorous, step-by-step process.
Step 1: Comprehensive Site Inspection
We never guess. Our engineers visit your facility in PCMC, Pune, or nearby industrial clusters. We measure the available height, analyze the existing floor slab's load capacity, identify obstructions (pipes, lights, structural columns), and discuss your exact operational needs.
Step 2: Custom AutoCAD Design and Engineering
Based on the site survey, we create detailed structural drawings. This phase determines the size of the I-beams, C-channels, and MS columns needed to safely support your intended weight load. We design the layout for maximum efficiency, including staircase placement, loading gates, and safety railings.
Step 3: Premium Material Procurement
We source high-grade Mild Steel from certified suppliers. Every beam, joist, and plate is selected to meet Indian Standard (IS) specifications for structural integrity.
Step 4: Precision Workshop Fabrication
To minimize disruption at your facility, the majority of the heavy cutting, drilling, and welding is completed at our fabrication unit. We use precision tools to ensure exact measurements, followed by a rigorous anti-rust treatment using premium primers to protect the steel.
Step 5: On-Site Installation
Our expert installation teams arrive at your facility ready to assemble. Because the framework is pre-fabricated and precision-drilled, assembly is swift and non-intrusive. We securely bolt the main support columns to your concrete slab using heavy-duty chemical anchors.
Step 6: Decking, Railing, and Finishing
Once the skeletal framework is up, we install the decking. Depending on your needs, this can be M.S. chequered plates for heavy machinery, corrugated steel decking sheets, or high-density particle boards for office spaces. Finally, we weld standard industrial handrails, safety kickboards, and access staircases.
Crucial Design Considerations for Your Mezzanine
Not all mezzanines are created equal. When we design a structure for your business, we account for several critical engineering and safety factors:
1. Load Capacity Variations
Light Duty (300 - 500 kg/sq.m): Ideal for staff break rooms, light cardboard box storage, and standard office setups.
Medium Duty (500 - 1000 kg/sq.m): Required for standard pallet racking, shelving systems, and light machinery.
Heavy Duty (1000+ kg/sq.m): Engineered with massive I-beams to support heavy manufacturing equipment, raw metal storage, and heavy-duty forklifts/pallet jacks operating on the platform.
2. Access and Flow
How will goods and people move up and down? We design wide, industrial-grade steel staircases with anti-slip treads. For goods, we can integrate custom loading gates (pallet gates, up-and-over gates) that allow forklifts to safely deposit pallets onto the mezzanine from the ground floor.
3. Decking Materials
M.S. Chequered Plate: The most durable option. Highly resistant to impact, ideal for heavy industry, and offers an anti-slip surface.
Steel Grating: Excellent for areas where ventilation, light penetration, and water drainage (for fire sprinkler systems) are necessary.
Decking Sheet with Plywood/Cement Board: Provides a smooth finish, perfect for office spaces or areas where staff will be standing for long periods.
4. Safety and Compliance
Safety is non-negotiable. Every mezzanine we fabricate includes robust perimeter handrails, knee rails, and toe boards (kick plates) to prevent tools or inventory from rolling off the edge. We ensure clear headroom both above and below the mezzanine, adhering strictly to industrial safety guidelines.
Why Local Expertise Matters for Pune and PCMC
Partnering with a local fabrication expert offers distinct advantages over hiring out-of-state contractors.
Proximity Means Speed: From the initial site visit to the final installation, our proximity to Chakan, Bhosari, Talawade, and the broader Pune region guarantees fast turnaround times. If a design needs to be tweaked on-site, our workshop is just a short drive away.
Understanding Local Environments: We understand the specific architectural styles of the MIDC sheds and the local weather conditions. We apply specialized anti-corrosive coatings that withstand the heavy humidity of the Maharashtra monsoons, preventing rust and ensuring longevity.
Rapid Maintenance and Support: While M.S. mezzanines require minimal maintenance, our local presence means we are always available for future modifications, load-capacity upgrades, or safety inspections as your business scales.
Maintaining Your M.S. Mezzanine Floor
To ensure your investment lasts for decades, we recommend a few simple maintenance practices:
Annual Visual Inspections: Check all bolted joints, chemical anchors at the base plates, and staircase fixtures for any signs of loosening due to factory vibrations.
Preventing Overloading: Always adhere to the Maximum Load Capacity clearly stated during the engineering phase. If your operational needs change and you must store heavier items, contact us to reinforce the structural beams.
Surface Care: Keep the decking clean. If you are using painted chequered plates, touch up any deep scratches to prevent localized rust formation. Keep grating clear of debris to maintain fire safety compliance.
Space should never be the bottleneck that stops your business from thriving. By utilizing the vertical volume already available in your facility, an M.S. mezzanine floor provides an immediate, robust, and financially savvy solution to your expansion needs. Whether you need a simple storage platform in a retail shop or a heavy-duty production deck in a Chakan manufacturing plant, custom mild steel fabrication offers unmatched strength and flexibility.
If you are operating in Pune, PCMC, or the surrounding industrial areas and are ready to unlock the hidden potential of your commercial space, reach out to our team today for a comprehensive site evaluation and a custom structural quote.
